Manifolds

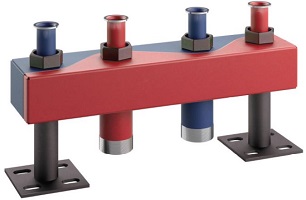

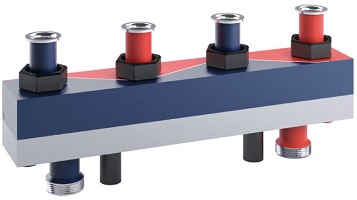

In the field of heating and air-conditioning, we offer a particularly wide and high quality range of water-and steam distributing components - ranging from Our unique compact manifolds with the sine curve, our hydraulic separators perfectly matching your requirements and custom-built buffer storage vessels. Including Specifically manufactored insulating materials, constitute our product portfolio. Whether in single-family houses or in industrial plants, we offer optimal solutions meeting most of your specific requirements.
Your benefits:
Space-saving arrangement of flow and return lines (no separate manifolds for flow and return line required)
Good flow characteristics due to sinusoidal arrangement of flow and return line chamber
Compact design and easy to install
Short delivery times
- small manifolds acc. to individual specifications
- Incl. individual insulation
- Make your choice:
- Size of chamber
- Distance between connections
- Connection design
- Output and connections acc. to specifications
- Individual designs from 3 m³/h to 300 m³/h
- Make your choice
- Immersion sensor well
- Drain / aeration set
- Magnetite separators

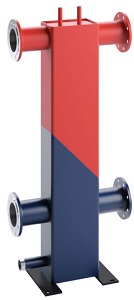

Manifold incl. hydraulic separator
- Optimum hydraulic system in any operating status
- Awarded with the Innovation Prize of the German Economy
- Fast and simple assembly
- Reduced heating costs due to low return flow temperatures
- Optimum hydraulic system with two temperature zones
- Ideal with in-floor heating and radiator combination
- Increased efficiency of the heating system due to the optimized exploitation of the calorific value
- Individual connection to each type of boiler
- Space-saving miracle due to the integrated hydraulic separator

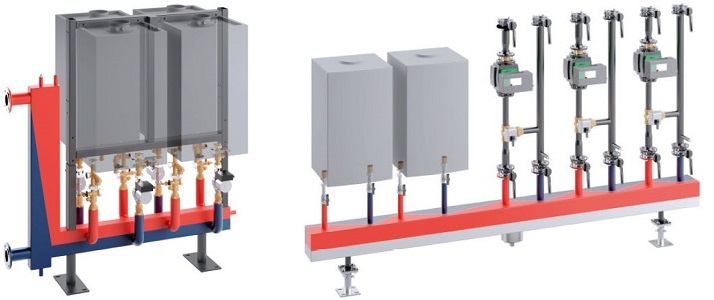

- Innovative technique for primary distribution

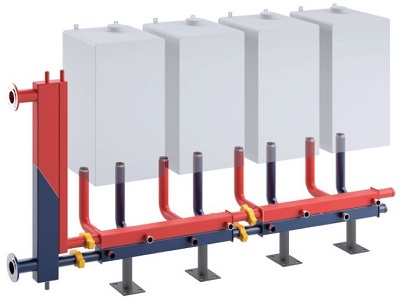

- Modular cascade solution especially for freestanding boilers
- Power ratings up to 1200 kW
- Special solutions for higher power ratings are possible
- Better handling of heavy components
- Optimised packaging size
Individual manufactured acc. to specifications

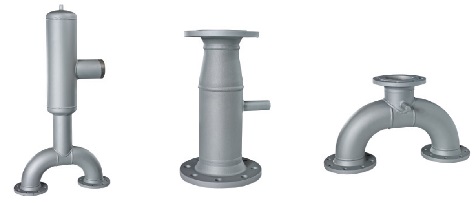

Connection sets
Complete pre-mounted groups incl. fittings
Steel or stainless steel
Maintenance box - Magnetite separation module
- suitable for the MonoFixx 80/80, as an optional extra for magnetite separation
- for attachment to the boiler return line beneath the manifold
- Enables desludging with pressurized system

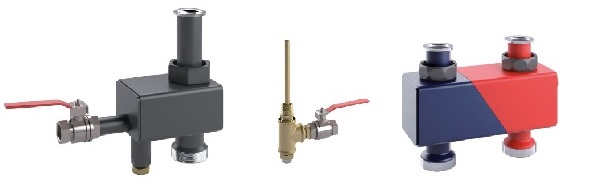

Magnetite separation module for small hydraulic separators
- Magnetic insert for separation of ferromagnetic substances
- Enables desludging with pressurized system
MonoFixx
- Hydraulic separator manifold for accommodation of a standard pump
- pressure-tested and primed at the factory.
