Water Storage Tanks



Winkelmann tanks are used to efficiently heat and store drinking water. Thanks to the large variety of models and a comprehensive accessory programme, a multitude of applications in private houses, in public buildings but also industrial structures are covered. In addition to individual solutions from projecting to serial production and manufacturing, we offer our customers an extensive product portfolio with various construction sizes and insulations with different variants and properties which are currently our standards.



Your benefits:

  • Over 1,000,000 Winkelmann tanks have already been produced

  • Energy efficiency classes A, B and C are available

  • Highest quality and production standards



Produtct range:

Hot water storage tanks
Buffer tanks
Individual and customized solutions

VF-1/VB-1 100–3000

  • Vertical tank for all heating systems

  • Energy efficiency class A, B, C

  • Corrosion resistant glass-lined, produced according to DIN 4753 T3 and EN DIN 12897

  • With magnesium anode, thermometer, adjustable feet and service opening
  • Tank up to 500 litres with “ecoIso” insulation and foil jacket (VF-1) or steel sheet jacket (VB-1), tanks above 500 litres with at least 100 mm fleece insulation
  • Up to 2,000 litres insulation preinstalled
  • Max. operating pressure: Heating water 10 bar, potable water 10 bar
  • Max. operating temperature: Heating water 110°C, potable water 95°C

VF-2/VB-2 200-3000

  • Vertical storage tank for solar energy systems
  • Corrosion resistant glass-lined, produed according to DIN 4753 T3 and EN DIN 12897
  • With magnesium anode, thermometer, adjustable feet and service opening
  • Tank up to 500 litres with “ecoIso” insuation and foil jacket (VF-2) or steel sheet jacket (vVB-2), tanks above 500 litres with at least 100 mm fleece insulation
  • Up to 2,000 litres insulation preinstalled
  • Max. operating pressure: Heating water 10 bar, potable water 10 bar
  • Max. operating temperature: Heating water 110°C, potable water 95°C

W-1 300-1000
W-2 300-1000

  • High-efficiency tank with enlarged heating surface, for use in heat pump systems in particular or in systems with high hot water requirements
  • Corrosion resistant glass-lined, produced according to DIN 4753 T3 and EN DIN 12897
  • With magnesium anode and thermometer, adjustable feet and service opening
  • With 1 ½" coupling
  • Tank up to 500 litres with “ecoIso” insulation and foil jacket, tanks above 500 litres with 100 mm fleece insulation
  • Insulation preinstalled
  • Max. operating pressure: Heating water 10 bar, potable water 10 bar
  • Max. operating temperature: Heating water 110°C, potable water 95°C

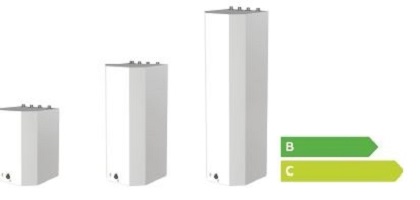

V-LS 200-3000

  • Vertical tank for hot water heating purposes by using external charging systems
  • Corrosion resistant glass-lined, produced according to DIN 4753 T3 and EN DIN 12897
  • With magnesium anode, thermometer and adjustable feet
  • With up to four flanges for additional heat sources depending on tank size
  • Tank up to 500 litres with “ecoIso” insulation and foil jacket, tanks above 500 litres with at least 100 mm fleece insulation
  • Up to 2,000 litres insulation preinstalled
  • Max. operating pressure: Potable water 10 bar
  • Max. operating temperature: Potable water 95°C

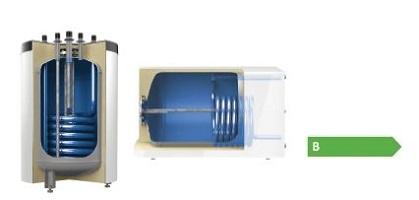

V-AO 120/160

V-US 150/250

  • Tank in compact design for all heating installations, in horizontal position (type US) orertical position (type AO)
  • Corrosion resistant glass-lined, produced according to DIN 4753 T3 and EN DIN 12897 - With magnesium anode, thermometer and insulation preinstalled
  • Max. operating pressure: Heating water 10 bar, potable water 10 bar
  • Max. operating temperature: Heating water 110°C, potable water 95°C

V-WH...-1
V-WH...-1/E
V-WH...E
60/110/160

  • Corrosion resistant glass-lined, produced according to DIN 4753 T3 and EN DIN 12897 -  Wall-hung tanks in compact design, suitable with all conventional energy sources
  • Variant E (electrical heating element) with high-quality ceramic immersion heater without contact with potable water
  • Steel sheet jacket with “ecoIso” insulation system
  • For AC…/1E–W and AC…/E–W: Capacity 3,000 W at 400 V or 1,000 W at 230 V Regulating range: 7°C–85°C, shut-down at 110°C
  • Max. operating pressure: Heating water 10 bar, potable water 10 bar
  • Max. operating temperature: Heating water 110°C, potable water 95°C

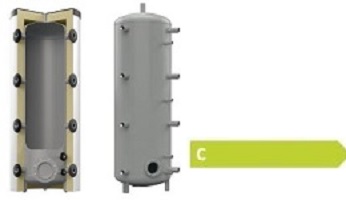

V-PH 300-2000
V-PHF 300-5000
V-PHW 300-5000


  • Tank container from S235JRG2 (RSt 37-2) quality steel for heating applications; buffer tank for cooling systems available on demand
  • Tank interior untreated, exterior powder-coated
  • Up to 2,000 litres insulation preinstalled
  • Fleece insulation with foil jacket (up to 1,000 litres with 100 mm insulation, above 1,000 litres with 120 mm insulation)
  • Max. operating pressure: Tank 3 bar (from 1,500: 6 bar)
  • Max. operating temperature: Tank 95°C

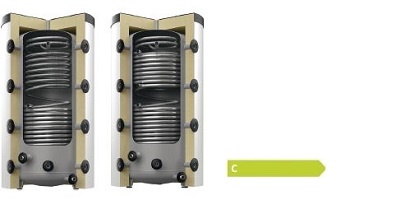

V-EWS_.-1 - 500-1000

V-EWS_.-2- 500-1000

  • Tank container from S235JRG2 (RST-37-2) quality steel for heating application
  • Combined storage tank permits heating support by simultaneous heating sourced for sanitary water
  • Potable water heating in continous flow principle (stainless steel corrugated pipe)
  • Tank interior untreated
  • Fleece insulation with foil jacket (up to 1,000 litres with 100 mm insulation, above 1,000 litres with 120 mm insulation) preinstalled
  • Max. operating pressure: Tank 3 bar, heating water 10 bar, protable water 6 bar
  • Max. operating temperature: Tank 95°C, heating water 110°C, potable water 95°C

Please contact us for further information.
